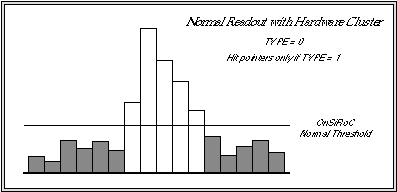

Figure 7a : Normal and Fast data readout types
In addition to the primitives described in the VMEXI_SSP, for the Silicon Readout the following routines are added. Remember that up to 16 OnSiRoCs are numbered from 0 through 15 within a single crate. Naturally all access to the OnSiRoC system is made through the VMEtaxi, so allowing the latter to remain the primary data acquisition master of the complete readout chain.
Routine Name Description Entry & Exit Arguments (Registers) SI_INIT Initialise OnSiRoC Enter D7.L = OnSiRoC number Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC SI_ALL_INIT Initialise all OnSiRoCs in a crate Exit D7.L = Bit pattern of OnSiRoCs found SI_STAT Status of OnSiRoC Enter D7.L = OnSiRoC number Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D1.W = Status word D2.L = Channel + Pipeline Counter 1 D3.L = Channel + Pipeline Counter 2 D4.L = Hit Detector Threshold D5.W = Cluster Detector Threshold SI_SET_VOLTS Set Bias Voltages Enter D7.L = OnSiRoC number D1.W = Bias Voltage 1 (8-bit) D2.W = Bias Voltage 2 (8-bit) D3.W = Bias Voltage 3 (8-bit) D4.W = Bias Voltage 4 (8-bit) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $02 Invalid setting Note that if a value of -1 is requested, that particular voltage is skipped. SI_READ_CURR Read 8-bit currents Enter D7.L = OnSiRoC number Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D1.W = Current 1 D2.W = Current 2 D3.W = Current 3 D4.W = Current 4 SI_CTRL Set Control Registers Enter D7.L = OnSiRoC number D1.W = Control Register 1 D2.W = Control Register 2 Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC SI_CCPIC Set Channel & Pipeline Counters Enter D7.L = OnSiRoC number D1.W = Channel Counter 1 (11-bit) D2.W = Channel Counter 2 (11-bit) D4.W = Pipeline Counter (5-bit) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $01 Counters incorrectly set Note that if a PIC value of -1 is requested, only the channel counters are set. SI_THRESH Set Thresholds Enter D7.L = OnSiRoC number D4.L = Hit Detector Threshold D5.L = Cluster Detector Threshold Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $03 Hit Threshold incorrectly set D0.B = $0C Cluster Threshold incorrectly set D0.B = $0F Both Thresholds incorrectly set
Local Loading of Sequencer and Pedestal routinesSI_LOAD_SEQ Load Sequencer Enter D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store SI_CHECK_SEQ Check Sequencer Enter D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store D0.B = $CF Check Failure, with A0 = Store address where check failure found D3.L = Data Sent from Store D4.L = Data Read back in Sequencer SI_LOAD_PED Load Pedestals Enter D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store Pedestals are loaded in byte-blocks where each 32-bit word is in the OnSiRoC 4-3-2-1 format. First the Channel Counters, then the Pipeline is incremented according to the GAL on the OnSiRoC. On exit, if D0=0, then A1 points to next store address.. in case loading consecutive OnSiRoCs. SI_CHECK_PED Check Pedestals Enter D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store D0.B = $CF Check Failure, with A0 = Store address where check failure found D1.L = Next value of PIC+CC1 D3.L = Data Sent from Store D4.L = Data Read back from Pedestal memory On exit, if D0=0, then A1 points to next store address. SI_READ_DATA Read Data "Normal DAQ" Data Type 0 Enter D7.L = OnSiRoC number A2.L = Start address to Store Data Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store D0.B = $11 Invalid Pointer Counter value read D0.B = $22 Invalid Cluster size found D0.B = $77 Invalid Raw Data found D6.L = Number of 32-bit words transferred On exit, if D0=0, then A2 points to next store address. This routine reads out the hits and cluster data before transferring to the data store. The readout follows the 3-1-4-2 channel sequence of the OnSiRoC. See Appendix for format.
Figure 7a : Normal and Fast data readout types
SI_READ_HITS Read Hits only "Fast DAQ" Data Type 1 Enter D7.L = OnSiRoC number A2.L = Start address to Store Data Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store D0.B = $11 Invalid Pointer Counter value read D6.L = Number of 32-bit words transferred ie number of hits On exit, if D0=0, then A2 points to next store address. With this routine, only the Pointer memory is read out and transferred to the data store. The readout sequence follows the 3-1-4-2 channel sequence of the OnSiRoC. The data format is summarised in the Appendix. SI_READ_RAW Read all Raw data "Full DAQ" Data Type 2 Enter D7.L = OnSiRoC number A2.L = Start address to Store Data Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store On exit, if D0=0, then A2 points to next store address. This routine transfers all raw memory data to the store, ie 4096 32-bit words. The readout sequence follows the 3+1 - 4+2 channel pairs of the OnSiRoC. The data format is summarised in the Appendix.

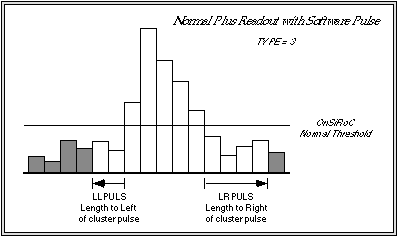

Figure 7b : Normal Plus data readout type
SI_READ_PULSE Read "Pulse" Data "Normal Plus" Data Type 3 Enter D7.L = OnSiRoC number A2.L = Start address to Store Data D3.W = Length to left of cluster-hit (0-6) D4.W = Length to right of cluster-hit (0-6) Total length must be < 9 Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store D0.B = $E1 Invalid pulse length requested D0.B = $11 Invalid Pointer Counter value read D0.B = $22 Invalid Cluster size found D0.B = $27 Invalid length counter because of bad pointer memory value D0.B = $77 Invalid Raw Data found D6.L = Number of 32-bit words transferred On exit, if D0=0, then A2 points to next store address. This routine is the same as SI_READ_DATA but allowing a specified pulse length in software.

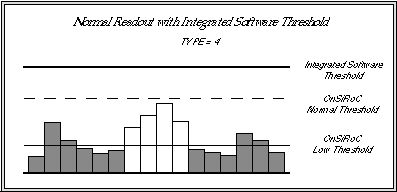

Figure 7c : Integrated Software Threshold data readout type
SI_READ_INTEG Read Integrated Software Threshold Data "Extra" Data Type 4 Enter D7.L = OnSiRoC number A2.L = Start address to Store Data D6.L = Integrated Software Threshold (overwritten on exit) Exit D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $BA Bus Error finding store D0.B = $11 Invalid Pointer Counter value read D0.B = $22 Invalid Cluster size found D0.B = $27 Invalid length counter because of bad pointer memory value D0.B = $77 Invalid Raw Data found D6.L = Number of 32-bit words transferred On exit, if D0=0, then A2 points to next store address. This routine is the same as SI_READ_DATA but allowing a lower Hit detector threshold to be set for "glancing" tracks; the integrated sum of the cluster if performed and the hit-cluster only accepted if the sum is greater than the software threshold value. SI_TEST_SEQ Test Sequencer Enter D7.L = OnSiRoC number D6.L = First random number Exit D6.L = Next random number D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $CF Check Failure, with D3.L = Data Sent/written D4.L = Data Read back in Sequencer All tests generate a reproducible 32-bit random number sequence. The more times a routine is called, the more randomised the test sequence. SI_TEST_PED Test Pedestal Memory Enter D7.L = OnSiRoC number D6.L = First random number Exit D6.L = Next random number D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $C1 Invalid Channel Counter 1 ie, CC 1 not incremented correctly D0.B = $CF Check Failure, with D1.L = Next value of PIC+CC1 D3.L = Data Sent/written D4.L = Data Read back from Pedestal memory SI_TEST_POINT Test Pointer Memory Enter D7.L = OnSiRoC number D6.L = First random number Exit D6.L = Next random number D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $C0 Invalid Pointer Counter ie PC not incremented correctly D0.B = $C2 Invalid Channel Counter 2 ie CC 2 not incremented correctly D0.B = $CF Check Failure, with D1.W = Next value of Channel Counter A2 = Pointer Memory Register Address D3.L = Data Sent/written D4.L = Data Read back from Pointer memory SI_TEST_RAW Test Raw Data Memory Enter D7.L = OnSiRoC number D6.L = First random number Exit D6.L = Next random number D0.B = 0 if executed normally D0.B = $FF Invalid OnSiRoC number D0.B = $BE Bus Error accessing OnSiRoC D0.B = $C2 Invalid Channel Counter 2 ie CC 2 not incremented correctly D0.B = $CF Check Failure, with D1.W = Next value of Channel Counter A2 = Raw Data Memory Register Address D3.L = Data Sent/written D4.L = Data Read back from Raw data memory
Routine Name Description Entry & Exit Arguments (Registers) SI_RINIT Initialise OnSiRoC in Remote VMEtaxi crate Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number Exit D0.B = Returned value from XI_TRANSMIT SI_RALL_INIT Initialise all OnSiRoCs in a Remote VMEtaxi crate Enter D1.L = Remote VMEtaxi crate number Exit D0.B = Returned value from XI_TRANSMIT D7.L = Bit pattern of OnSiRoCs found SI_RSTAT Status of Remote OnSiRoC Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number Exit D0.B = Returned value from XI_TRANSMIT D1.W = Status register D2.L = Channel + Pipeline Counter 1 D3.L = Channel + Pipeline Counter 2 D4.L = Hit Detector Threshold D5.W = Cluster Detector Threshold SI_RSET_VOLTS Set Bias Voltages of Remote OnSiRoC Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number D0.W = Bias Voltage 1 (8-bit) D2.W = Bias Voltage 2 (8-bit) D3.W = Bias Voltage 3 (8-bit) D4.W = Bias Voltage 4 (8-bit) Exit D0.B = Returned value from XI_TRANSMIT Note that if a value of -1 is requested, that particular voltage is skipped. SI_READ_CURR Read 8-bit currents of Remote OnSiRoC Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number Exit D0.B = Returned value from XI_TRANSMIT D1.W = Current 1 D2.W = Current 2 D3.W = Current 3 D4.W = Current 4 SI_RCTRL Set Control Registers of Remote OnSiRoC Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number D0.W = Control Register 1 D2.W = Control Register 2 Exit D0.B = Returned value from XI_TRANSMIT SI_RCCPIC Set Channel & Pipeline Counters of Remote OnSiRoC Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number D0.W = Channel Counter 1 (11-bit) D2.W = Channel Counter 2 (11-bit) D4.W = Pipeline Counter (5-bit) Exit D0.B = Returned value from XI_TRANSMIT Note that if a PIC value ((D4) of -1 is requested, only the channel counters are set. SI_RTHRESH Set Thresholds of Remote OnSiRoC Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number D4.L = Hit Detector Threshold D5.L = Cluster Detector Threshold Exit D0.B = Returned value from XI_TRANSMIT
Remote Loading of Sequencer and Pedestal routines
SI_RLOAD_SEQ Load Sequencer of OnSiRoC in Remote VMEtaxi crate ... Remote Load Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = Returned value from XI_TRANSMIT In this routine the store is in the remote crate, with the address specified as that seen by the remote VMEtaxi. SI_RLOAD_PED Load Pedestals of OnSiRoC in Remote VMEtaxi crate ... Remote Load Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = Returned value from XI_TRANSMIT In this routine the store is in the remote crate, with the address specified as that seen by the remote VMEtaxi. Pedestals are loaded in byte-blocks where each 32-bit word is in the OnSiRoC 4-3-2-1 format. First the Channel Counters, then the Pipeline is incremented according to the GAL on the OnSiRoC. On exit, if D0=0, then A1 points to next store address.. in case loading consecutive OnSiRoCs.
Local to Remote Loading of Sequencer and Pedestal routines
SI_LRLOAD_SEQ Load Sequencer of Remote OnSiRoC ... Local to Remote Load Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = Returned value from XI_TRANSMIT In this routine the store is in the local/master crate, with the address specified as that seen by the local/master VMEtaxi. SI_LRLOAD_PED Load Pedestals of Remote OnSiRoC ... Local to Remote Load Enter D1.L = Remote VMEtaxi crate number D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) Exit D0.B = Returned value from XI_TRANSMIT In this routine the store is in the local/master crate, with the address specified as that seen by the local/master VMEtaxi. On exit, if D0=0, then A1 points to next store address.. in case loading consecutive OnSiRoCs. SI_LRLOAD_ALL Load All OnSiRoCs in a Remote VMEtaxi crate... Local to Remote Load Enter D1.L = Remote VMEtaxi crate number A1.L = Pedestal Store (16*64*4 kbytes) A2.L = Sequencer Store (64*4 kbytes) Exit D0.B = Returned value from XI_TRANSMIT In this routine the stores are in the local/master crate, with the start addresses specified as those seen by the local/master VMEtaxi. This primitive loads all pedestals and sequencer code from a common local store into all of the OnSiRoCs found in a remote crate. The pedestal store is assumed continguous for a full 16-OnSiRoC system crate, commencing at OnSiRoC number 0. Controllers not found are skipped by incrementing the store counter appropriately, allowing OnSiRoCs to be removed and re-inserted at will. Pedestals are loaded in byte-blocks where each 32-bit word is in the OnSiRoC 4-3-2-1 format. Note that the SiDAQ warm-start procedure calls this routine for each VMEtaxi crate set by SIMASK; pedestals are assumed stored contiguously starting at the first crate for full consecutive crates.
Remote to Remote Loading of Sequencer and Pedestal routines
SI_RRLOAD_SEQ Load Sequencer of Remote OnSiRoC ... Remote to Remote Load Enter D1.L = Remote VMEtaxi number; OnSiRoC crate D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) D6.L = Remote VMEtaxi number; Store address Exit D0.B = Returned value from XI_TRANSMIT In this routine the store is in a separate remote VMEtaxi crate, with the address specified as seen by that VMEtaxi. SI_RRLOAD_PED Load Pedestals of Remote OnSiRoC ... Remote to Remote Load Enter D1.L = Remote VMEtaxi number; OnSiRoC crate D7.L = OnSiRoC number A1.L = Start address of Store (64*4 kbytes) D6.L = Remote VMEtaxi number; Store address Exit D0.B = Returned value from XI_TRANSMIT In this routine the store is in a separate remote VMEtaxi crate, with the address specified as seen by that VMEtaxi.
