The Mapping Functions

Pad-Channel Mapping on Hybrid

Each four pads of the same radius are bonded to a preamplifier/discriminator chip. Its (digital) output is transferred to the repeater where it is further processed in a XILINX FPGA.

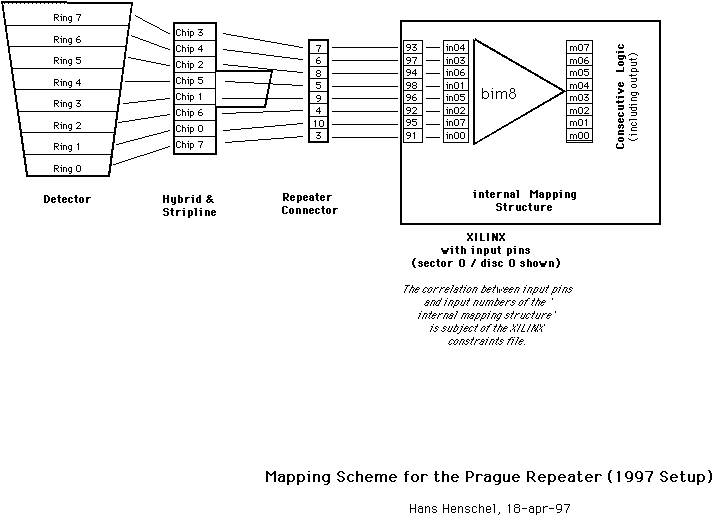

The mapping graphics from detector to repeater output.

Input-Output Mapping on Repeater

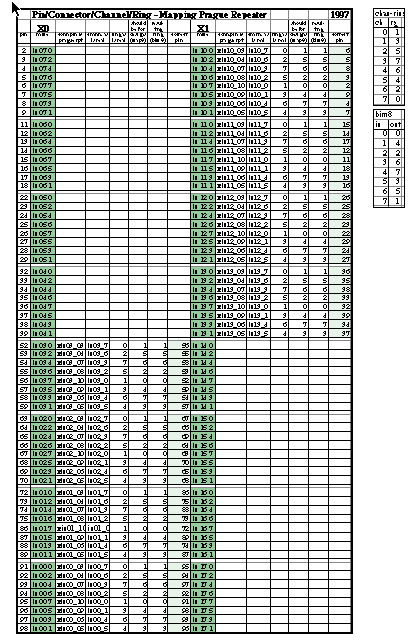

The full mapping function of the 1997 ("Prague") revision of the repeater: Mapping function for the repeater

Mapping for Trigger Card and PQZP

table/graphics have to be added...

Back to the Shift Instructions.
