Location | Dosis | ||||||||||||||
Nb. | x | y | z | r | phi | sector | Gy | ||||||||
[mm] | [mm] | [mm] | [mm] | ° | 1998 | 1999 | 2000 | 2003 | update | ||||||
60 | 60 | 0 | -340 | 60 | 0 | 15/0 | 6000 | 80 | * | ||||||
61 | 0 | 60 | -340 | 60 | 90 | 3/4 | 6500 | 75 | * | ||||||
62 | -95 | 0 | -340 | 95 | 180 | [7/8] | 6800 | 75 | * | ||||||
63 | 0 | -60 | -340 | 60 | 270 | 11/12 | 4000 | 110 | * | ||||||
92 | 60 | 0 | -380 | 60 | 0 | 15/0 | 36 | 224 | 29.6 | ||||||
95 | 120 | 0 | -380 | 120 | 0 | 15/0 | 12 | 35 | 5.7 | ||||||
93 | 0 | 60 | -380 | 60 | 90 | 3/4 | 24 | 95 | 30.8 | ||||||
82 | 0 | 120 | -380 | 120 | 90 | 3/4 | 6 | ||||||||
90 | -60 | 0 | -380 | 60 | 180 | 7/8 | 26 | 238 | 52 | ||||||
94 | -120 | 0 | -380 | 120 | 180 | 7/8 | 10 | 48 | 5.3 | ||||||
91 | 0 | -60 | -380 | 60 | 270 | 11/12 | 31 | 397 | 50 | ||||||
81 | 0 | -120 | -380 | 120 | 270 | 11/12 | 6.6 | ||||||||
56 | 60 | 0 | -660 | 60 | 0 | 15/0 | 5500 | 2000 | | ||||||
57 | 0 | 60 | -660 | 60 | 90 | 3/4 | 7500 | 460 | | ||||||
58 | -95 | 0 | -660 | 95 | 180 | [7/8] | 6000 | 230 | | ||||||
59 | 0 | -60 | -660 | 60 | 270 | 11/12 | 5500 | 1200 | | ||||||
97 | 60 | 60 | -1240 | 60 | 45 | 1/2 | 8 | 9.4 | |||||||
96 | -60 | 60 | -1240 | 60 | 135 | 5/6 | 8 | 28 | 6.4 | ||||||
99 | -60 | -60 | -1240 | 60 | 225 | 9/10 | 9 | 55 | |||||||
98 | 60 | -60 | -1240 | 60 | 305 | 13/14 | 11 | 57 | 9.9 | ||||||
52 | 60 | 0 | -1265 | 60 | 0 | 15/0 | 22000 | 8800 | | ||||||
53 | 0 | 60 | -1265 | 60 | 90 | 3/4 | 10400 | 6700 | | ||||||
54 | -95 | 0 | -1265 | 95 | 180 | [7/8] | 14000 | 5900 | | ||||||
55 | 0 | -60 | -1265 | 50 | 270 | 11/12 | 32000 | 14000 | |
sector | 7/8 | is not equipped with detectors in BST3! | * - Mirrored values
(by D. Pitzl) - Values by Harshaw Method |
Schematic drawing of BST3 (2001-03) dosimeters location:
##60...63 were on the vertex bound end flange, ##56...59 on the backward flange of the detector volume and ##52...55 on the backward repeater end.
|
|

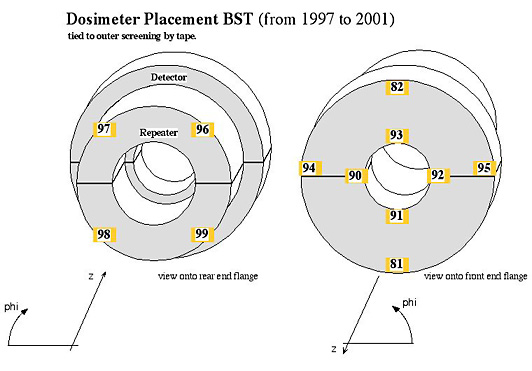

Schematic drawing of BST (1997-2001) dosimeters location:
##81, 82 and 90...95 were on the vertex bound end flange, ##96...99 on the backward repeater end.
|
Location | Dosis | ||||||||||||
Nb. | x | y | z | r | phi | sector | Gy | ||||||
[mm] | [mm] | [mm] | [mm] | ° | 1998 | 1999 | 2000 | 2003 | |||||
42 | 60 | 0 | 340 | 60 | 0 | 15/0 | 90.7 | ||||||
47 | 140 | 0 | 340 | 140 | 0 | 15/0 | 33.2 | ||||||
41 | 0 | 60 | 340 | 60 | 90 | 3/4 | 68.0 | ||||||
46 | 0 | 140 | 340 | 140 | 90 | 3/4 | 29.1 | ||||||
40 | -30 | 50 | 340 | 60 | 120 | 4/5 | 82.6 | ||||||
45 | -110 | 0 | 340 | 110 | 180 | [7/8] | 39.6 | ||||||
44 | -30 | -50 | 340 | 60 | 240 | 10/11 | 55.8 | ||||||
43 | 0 | -60 | 340 | 60 | 270 | 11/12 | 49.4 | ||||||
48 | 0 | -140 | 340 | 140 | 270 | 11/12 | 18.6 | ||||||
50 | -30 | 50 | 580 | 60 | 120 | 4/5 | 81.8 | ||||||
51 | -30 | -50 | 580 | 60 | 240 | 10/11 | 70.4 | ||||||
49 | 30 | -50 | 580 | 60 | 300 | 12/13 | 70.4 |
sector | 7/8 | is not equipped with detectors in FST! |
Schematic drawing of FST dosimeters location:
All dosimeters were placed on the vertex bound end flange except ##49...51 which sat on the forward flange of the detector volume.
|
compiled by H. Henschel, 25mar03
last revised 08may03
